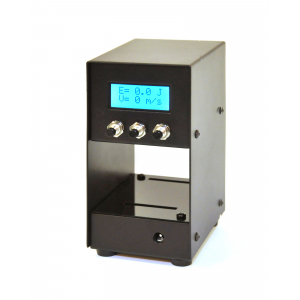

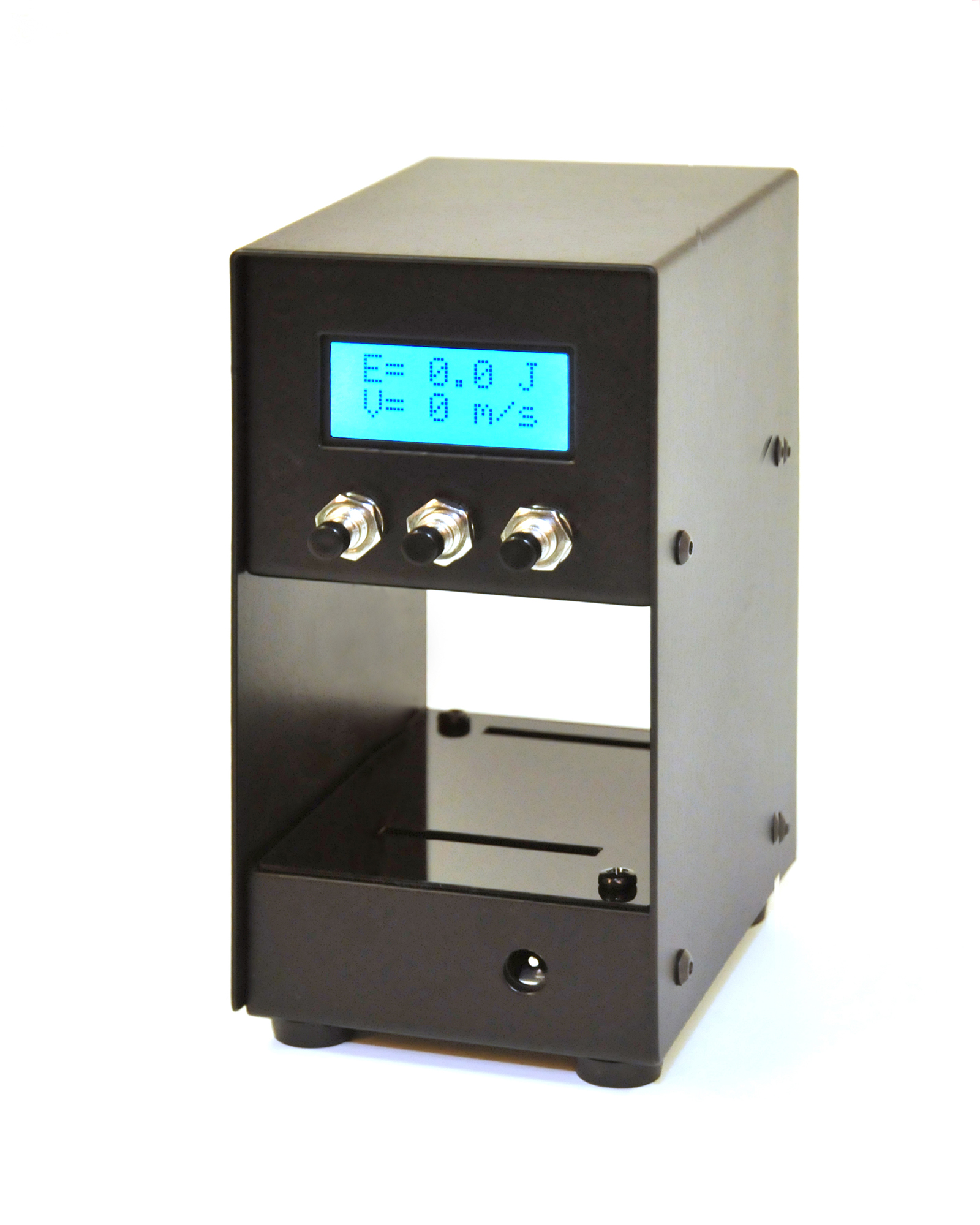

ahg-Anschütz Ballistic Chronograph [546]



The device is designed to measure the speed and kinetic energy ammunition of air guns. In our experience it is absolutely essential that the velocity of air rifles and air pistols are checked regularly. Fluctuations picked up quickly can indicate the need for a service or other intervention, saving much heartache in the longer run. Every 10m range should have one!


  • range of measurement : 6.1 - <= 500 m/s
  • current consumption: 100mA ( with LCD backlight)
  • power supply: 2x AA alkaline battery or AC/DC converter ~230V/ 7-12V
  • dimensions 135 x 67 x 87 mm
  • weight 600 g

Measurement functions:

  • velocity V [m/s]
  • kinetic energy E [J]
  • average kinetic energy Esr [J]
  • average velocity Vsr [m/s]
  • minimum velocity Vmin [m/s]
  • maximum velocity Vmax [m/s]
  • absolute velocity dVsr=|Vmax-Vmin|
  • standard deviation SV [m/s]
  • velocity feet per second V[fps]
  • rate of fire RoF (rate of fire)

Other functions:

  • setting weight of pellets 0.01 - 25.00g
  • calibration
  • memory 250 measurement of value
  • transmission via RS232 or USB-COM cable to computer
  • Delivery costs depend on the size and value of each shipment, and costs for mainland GB customers will be calculated and displayed as you add items to your basket.

    For UK customers, items in stock will normally be delivered in 1-3 working days. Postcode exceptions may apply for Channel Islands, Northern Ireland, Isle of Man and other areas.

    Shipments to other countries will always be sent using a tracked service.

    Please note that when Donald is travelling in his capacity as a Coach with British Shooting, delivery times are likely to be a little slower.

  • From Ian Potts from Surbiton
    (3rd May, 2021)
    A really neat bit of kit. Compact and simple to use, works well with .22LR too.
